NOTE:

Please use the Tuya Smart or Smart Life app.
This device is not compatible with Home Assistant.

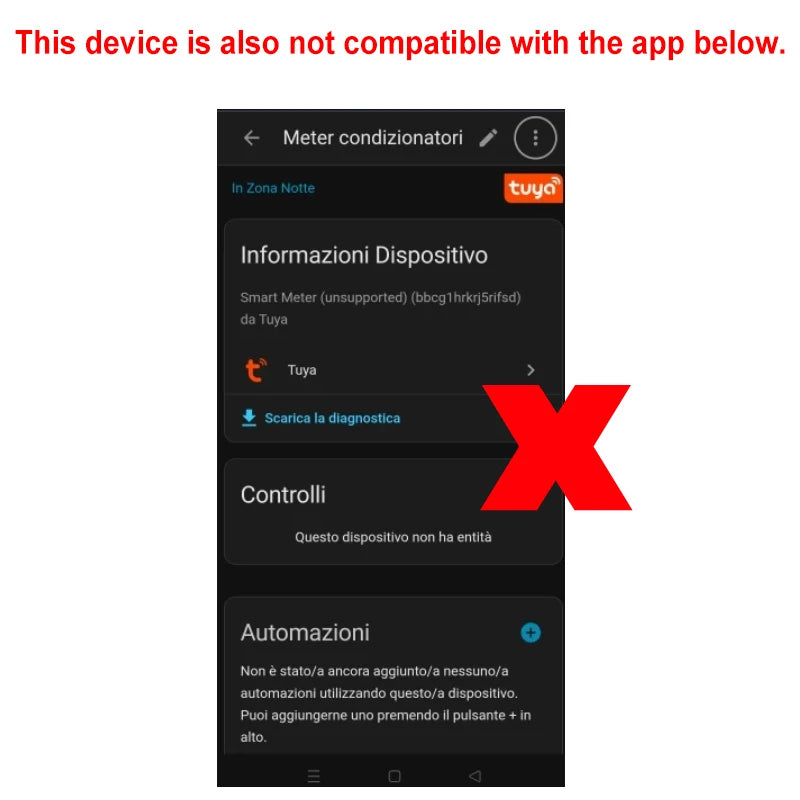

This device is also not compatible with the app below.

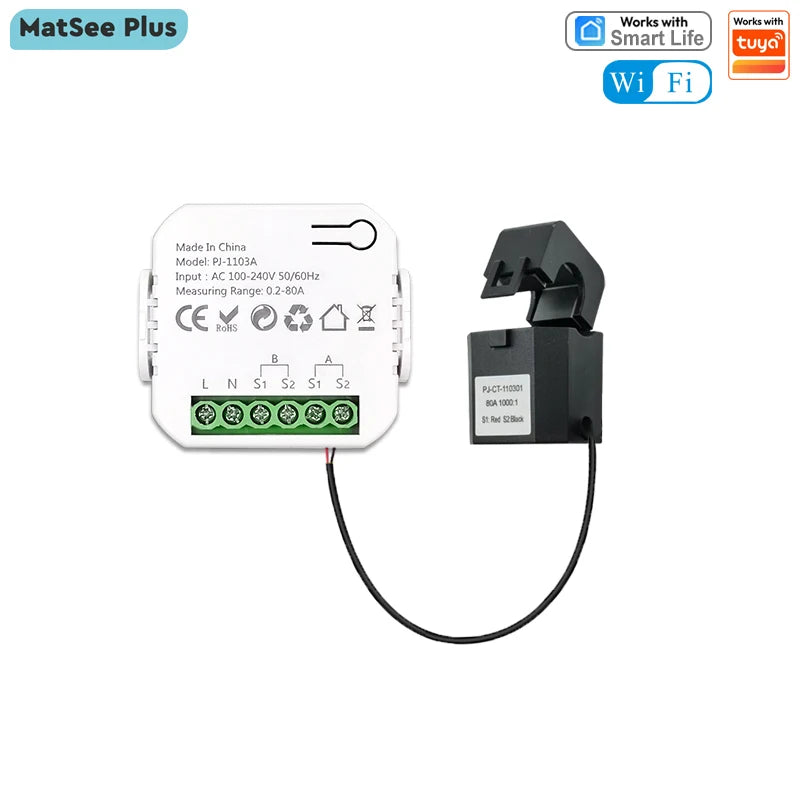

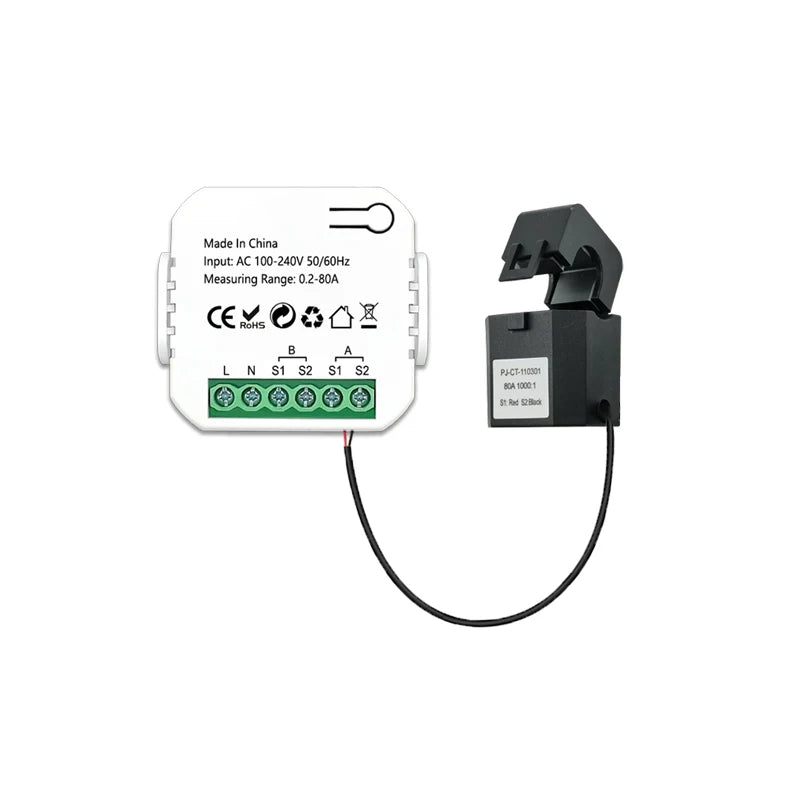

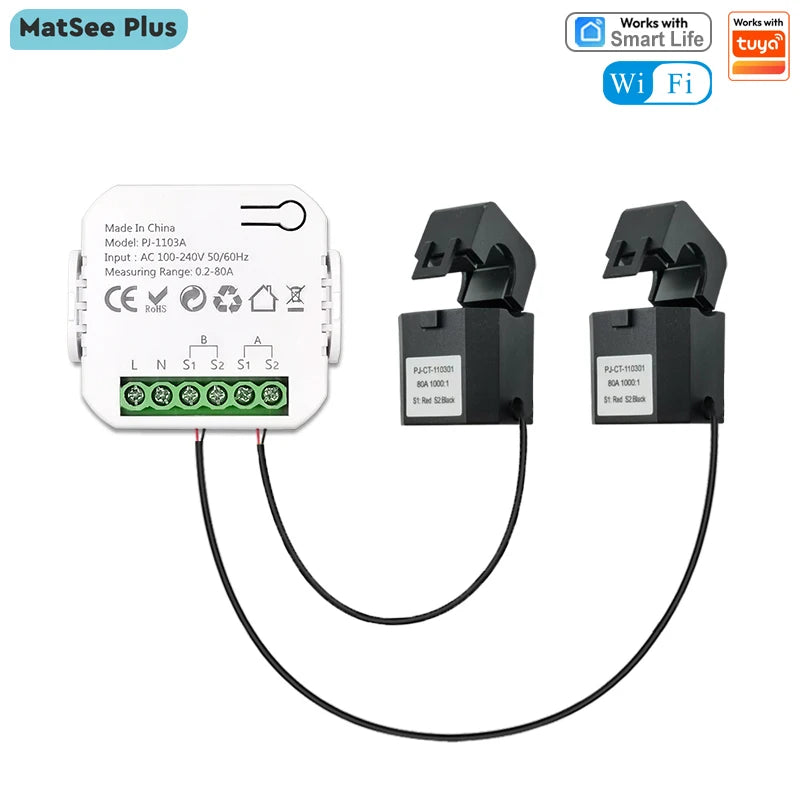

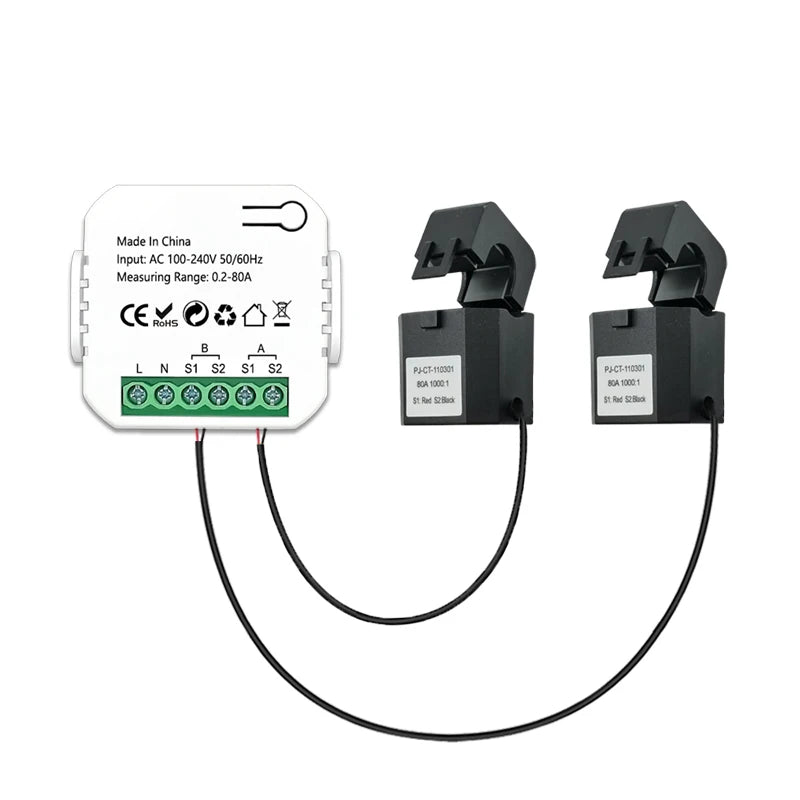

NEW ARRIVAL WIFI Smart Dual Channel Energy Meter with 2 Clamp 80A

2 Channels For Reverse and Forward direction

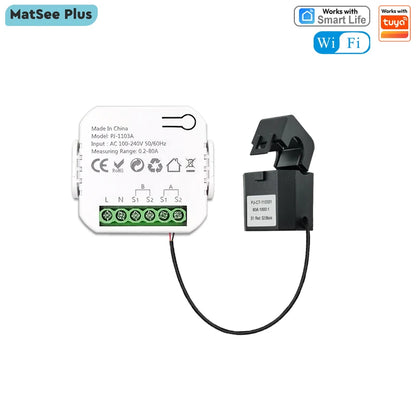

1 Channle or 2 Channels are available to Choose

And you can read from App for each Channel

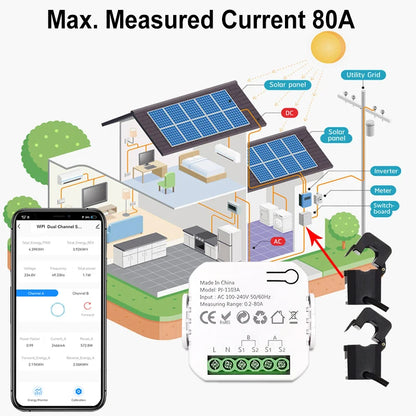

- Real-time total power of 2 channels of reverse and forward direction

- Power for Channel A and B Separately(W)

- Current(mA)

- Voltage(V),

- Power factor, and Frequency(Hz)

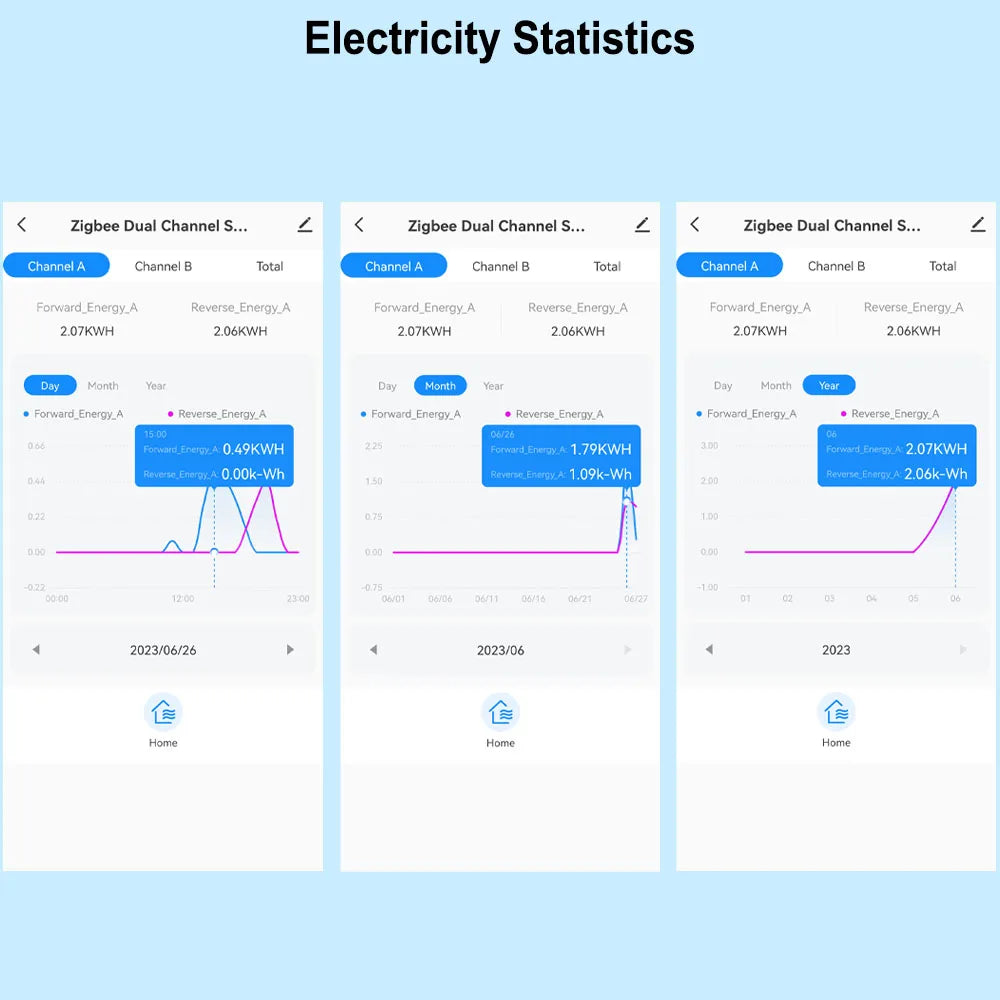

Electricity Statistic for each channel in Forward and Reverse direction.

Hourly Elec. (KWh)

Daily Elec. (KWh),

Monthly Elec. (KWh)

-Yearly Elec. (KWh)

Technical data:

Rated Voltage:100-240V AC 50/60Hz

Measurable Current Range: 0.2A-80A

WiFi Frequency: 2.4GHZ (Not Support 5Ghz)

Ambient Temperature Range:-10°C ~ 55°C

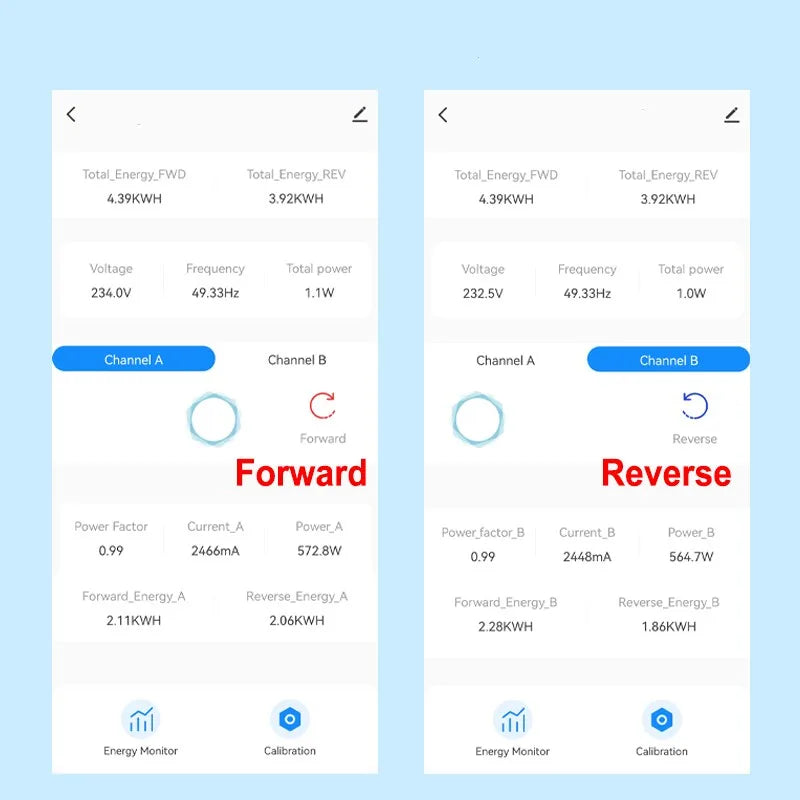

App can display Channel A and B Real-time power, current, voltage, power factor and frequency for Forward and Reverse direction clrealy

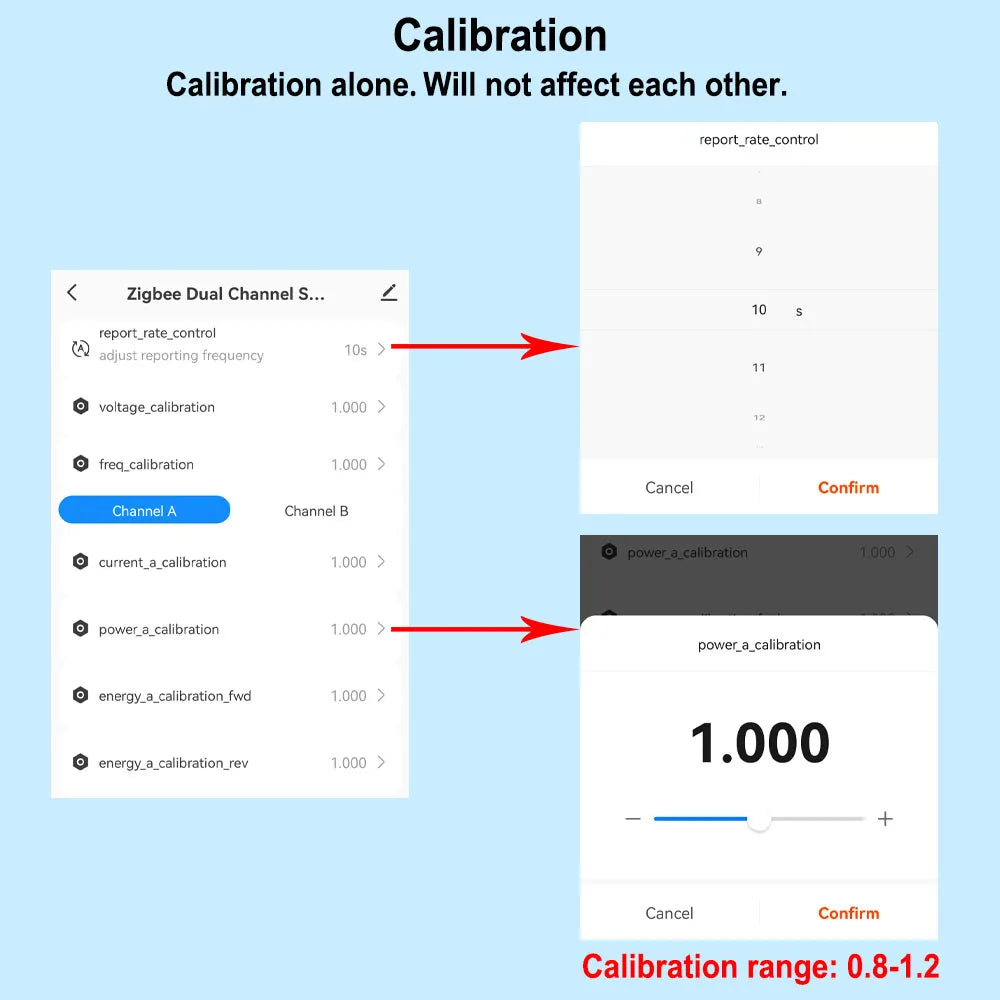

The meter allows to do calibration

Allow to Do Calibration

The device is able to do calibration by adjusting the percentage

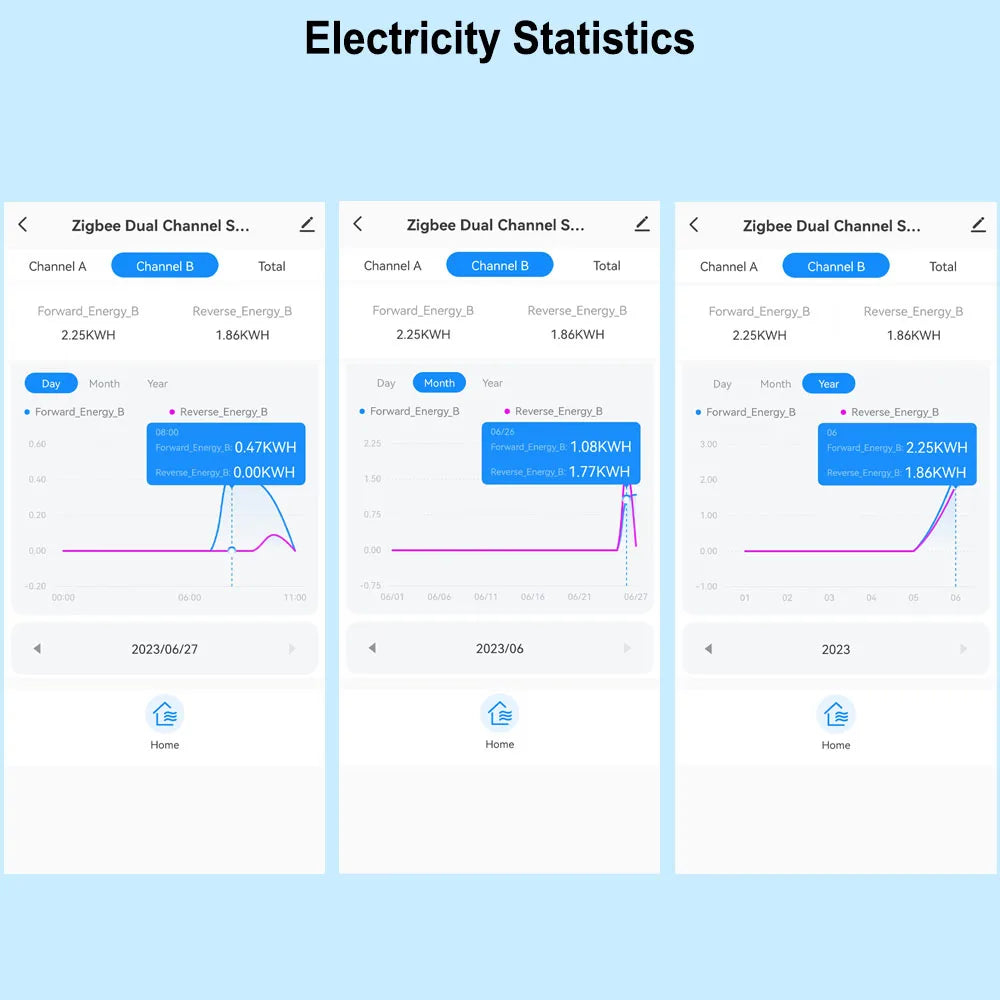

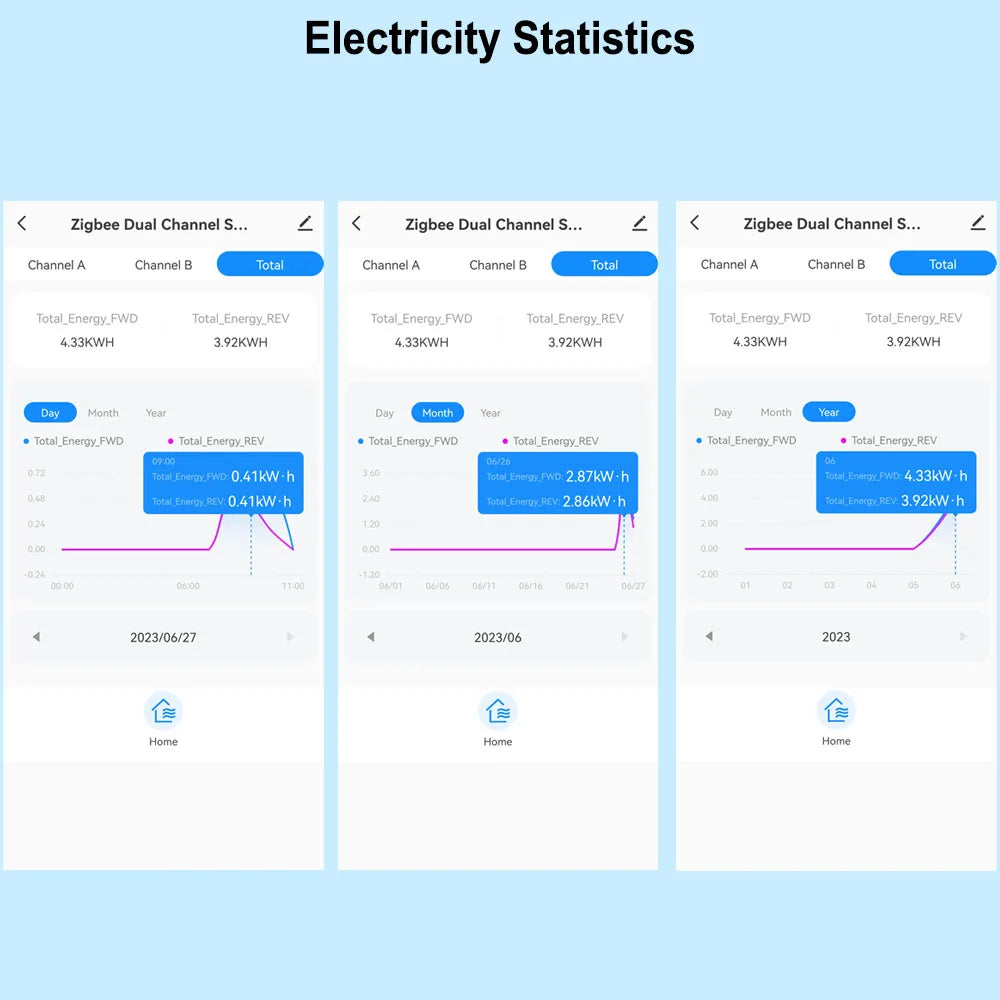

Electricity Statistic Channel A , B Separately and Total daily monthly, yearly Reverse and Forward Direction

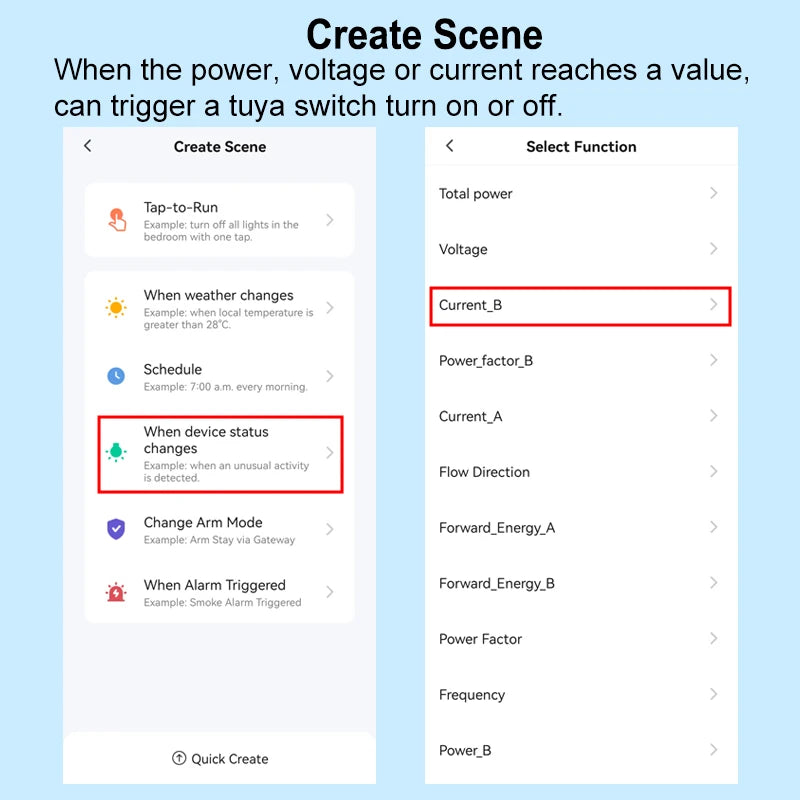

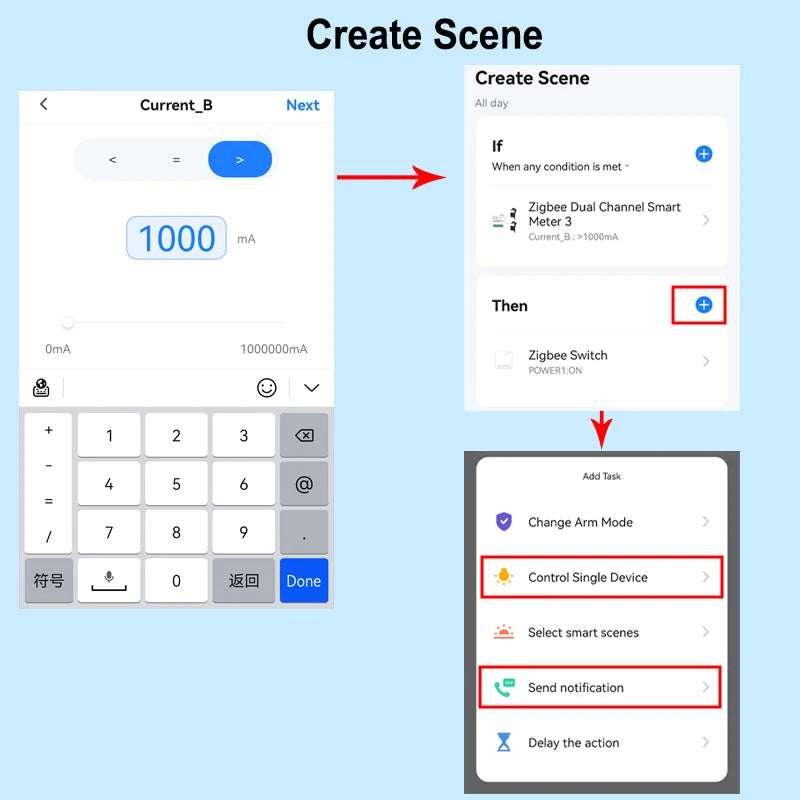

Automation , It allows to make a Scene for this device working with other tuya devices

Set Automation for the Measured Device ,

For example, If Power or Current Is over the Value, then other tuya device starts to work.

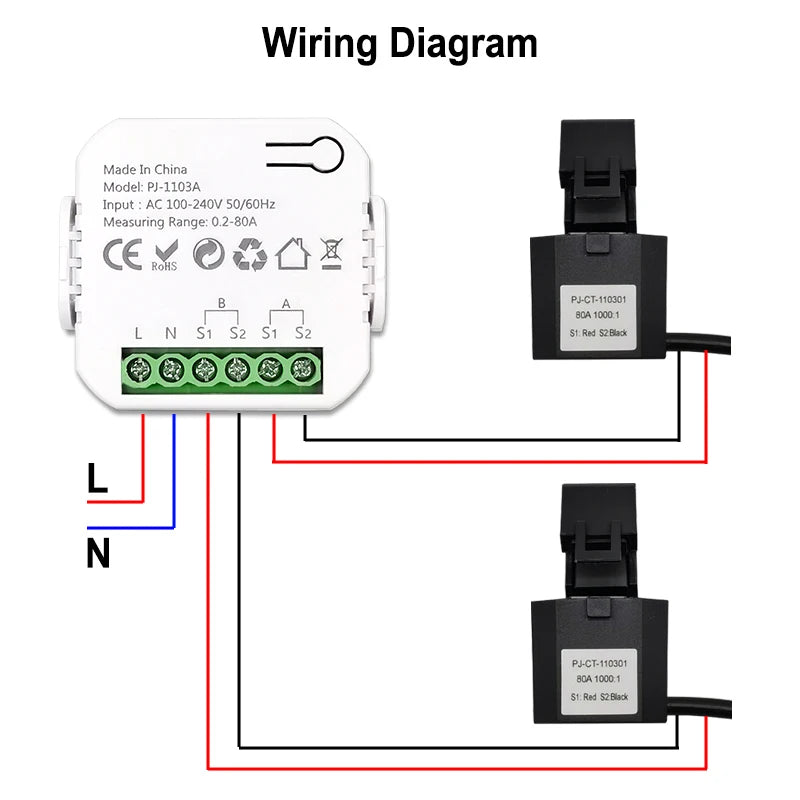

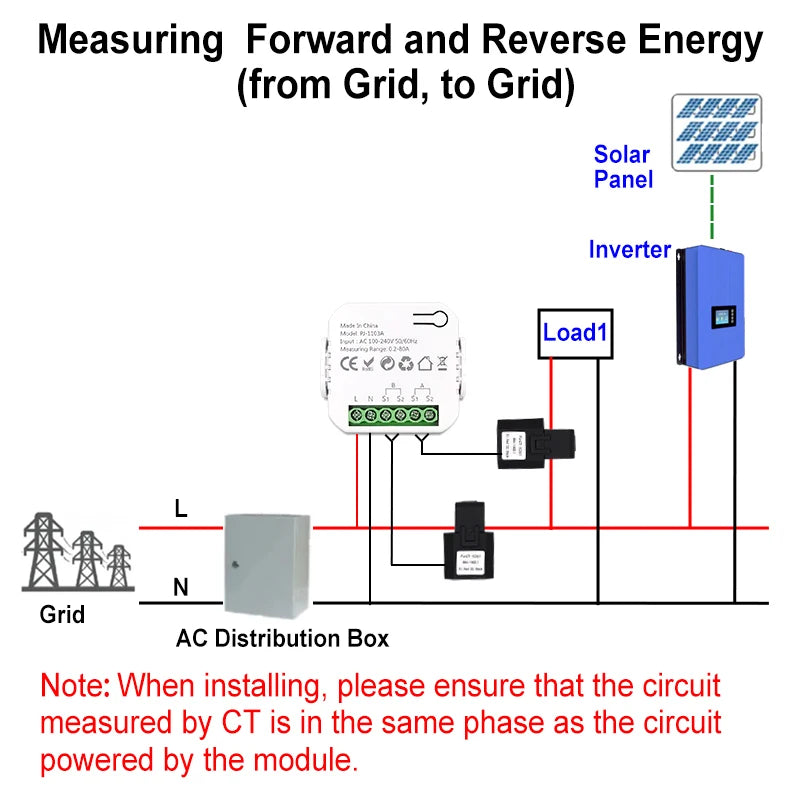

Wiring Diagram

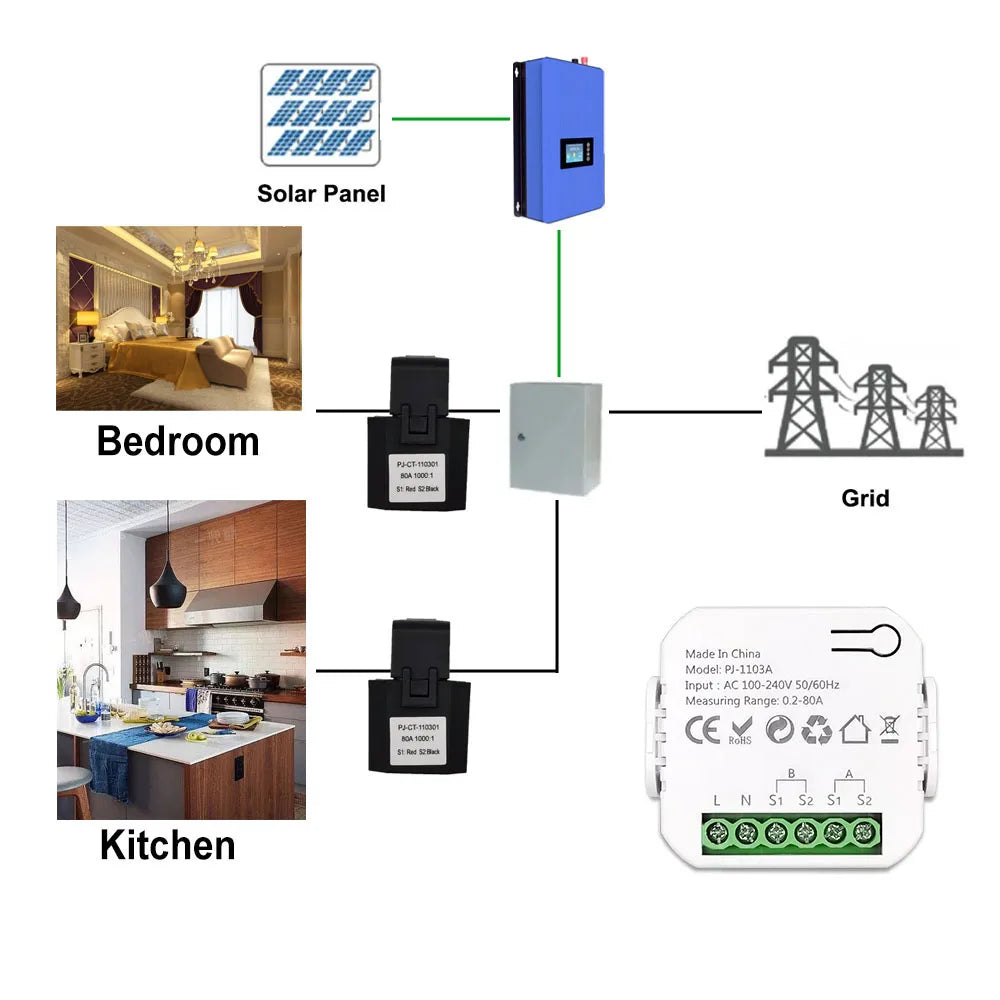

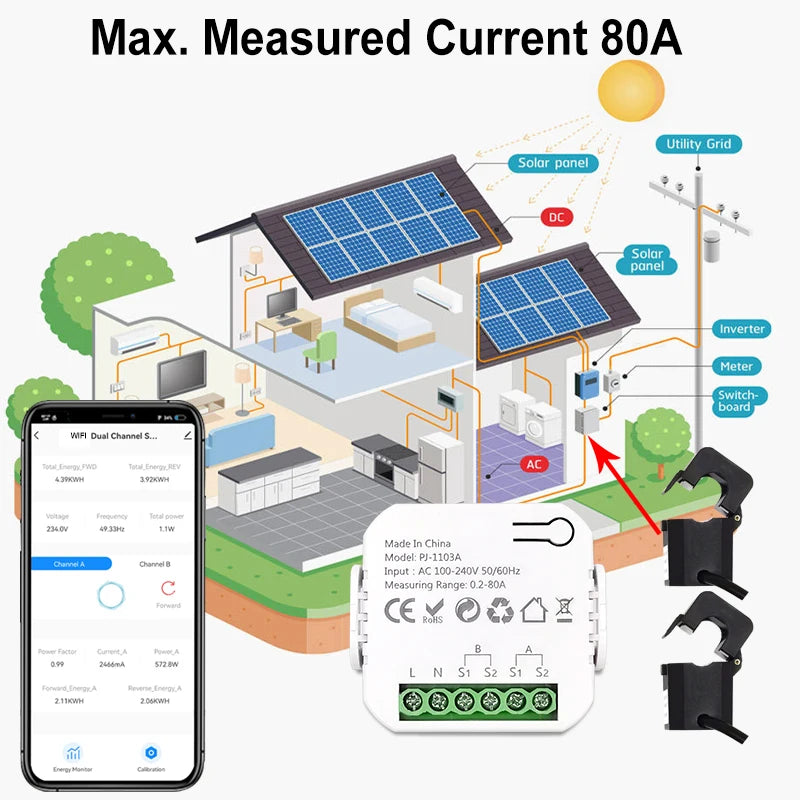

1. To measure the power 'from Grid' and 'To Grid'
